EM1431 Embedded Barcode Scanner Engine

Versatile Integration
Extensive Selection
Consumable Authentication
Identity Verification
Throughput Enhancement

Product Brochure

Inquire Now Next Product

DESCRIPTION

Wavecreating Embedded Barcode Scanner Engine offers advanced barcode reading solutions designed for seamless integration into OEM equipment. With robust features such as the 2D Scan Engine and Barcode Search Engine, this product provides unparalleled performance and reliability in industries like healthcare, retail, transportation, and manufacturing.

Features of Wavecreating Embedded Barcode Scanner Engine

Versatile Integration

Designed for easy embedding into OEM devices, including lab instruments, medical devices, kiosks, and robotic systems.
Helps increase device value by enabling consumable authentication, data input automation, and IoT integration for enhanced data tracking and integrity.

Extensive Selection

Offers one of the largest ranges of Embedded Barcode Scanner Engine solutions in the industry, available as plastic-enclosed or board-level designs.
Over 25 years of expertise ensures high-quality, cost-effective solutions tailored to OEM applications.

Benefits of Using an Embedded Barcode Scanner Engine

Consumable Authentication

Prevents the use of unauthorized consumables in medical and lab equipment by integrating an OEM ODM Barcode Engine for reliable detection.
Enhances operational security by ensuring consumable compatibility with machines.

Identity Verification

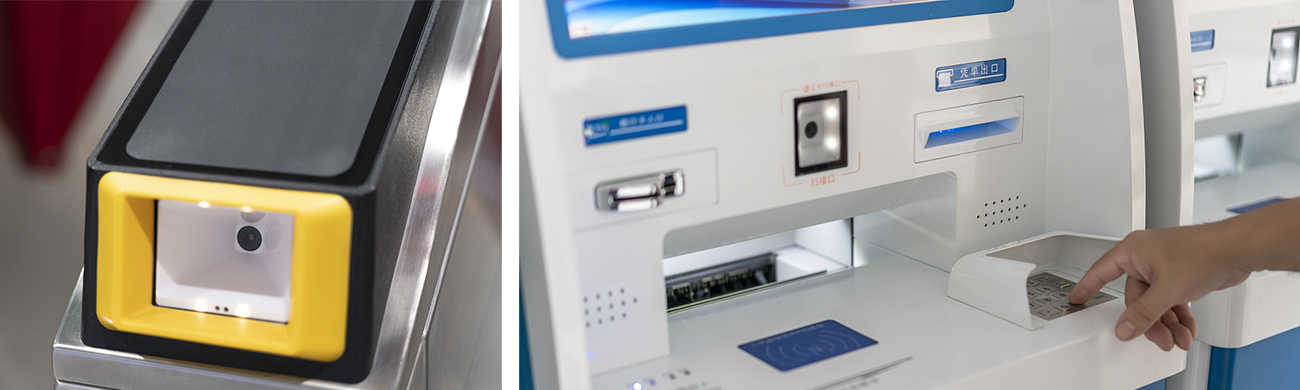

Widely used in kiosks, terminals, and lockers for identity verification, such as scanning tickets in airports or accessing secure lockers.

Sample Identification

Ideal for medical applications, it ensures accurate tracking of samples during testing procedures, improving record reliability and operational efficiency.

Throughput Enhancement

Speeds up information collection in applications like ticket scanning or locker access, reducing human error and increasing efficiency.

Traceability

Ensures accurate tracking at every stage of production, minimizing errors and improving overall process management in manufacturing.

Product Specifications

Scaning Code	Image Sensor		640 x 480 CMOS@30fps
	Light Source		White fill light
	Horizontal View Angle		Horizontal 70°, Vertical 55°
	Symbologies	2D	QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、Maxicode、 Micro PDF417、Code 16K
	Symbologies	1D	EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、 Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2 of 5 、 Plessey 、 China Post 、 GS1 Databar (RSS-Expand, RSS-Limited, RSS-14)
	Depth of Field	EAN-13	15 ~ 125mm（13mil）
		Code128	20 ~ 160mm（15mil）
		Mobile phone QR code for taking bus	50 ~ 160mm（6-inch screen mobile phone）
		Wechat payment code	15 ~ 270mm（6-inch screen mobile phone）
	Scan Angle		Rotation: 360°, Pitch: ± 60°, Deflection: ±60°
	Resolution	1D	≥5mil
	Resolution	2D	≥ 10mil
	Symbol Contrast		≥ 25%
Physical parameter	Weight		< 30g
	Dimensions		65.1mm * 60.6mm * 20.5mm
	Interface		USB VCP / USB HID-KBW (Default) / USB HID-POS /TTL-232 / RS232 / RS485 (Choose one of three)
	Voltage		DC +3.3V (optional: +5V ~ +30V (±5%))
	Current		160mA@5V supply power
Environmental parameters	Operating Temperature		-20℃ ~ 60℃
	Storage Temperature		-40℃ ~ 70℃
	Working Humidity		5% RH~95% RH (Non-condensing)
Reliability	Anti-mechanical shock	Shock	5~200Hz, 10Grms, 3axes, 1.5Hr
Reliability	Anti-mechanical shock	Fall	It can withstand falling from as high as 1.2 meters to the concrete floor.

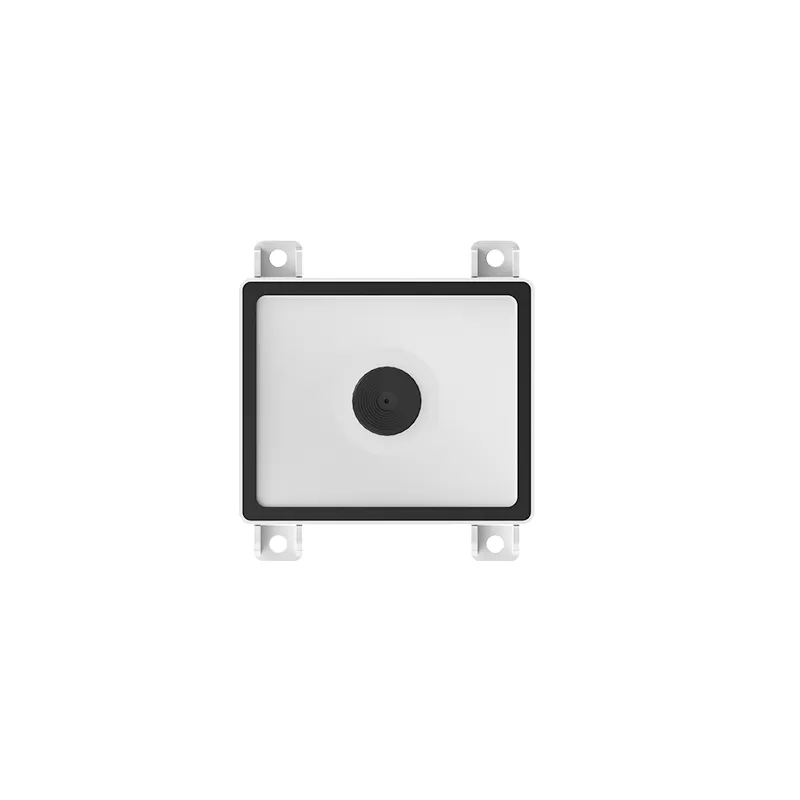

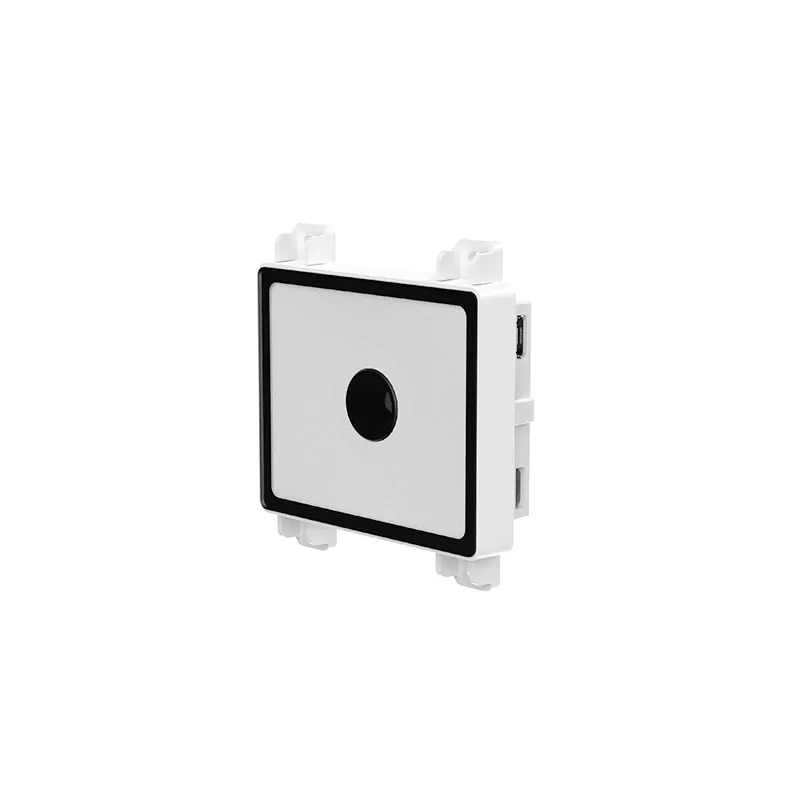

Embedded Barcode Scanner Module EM1431

Applications of Wavecreating Embedded Barcode Scanner Engine

Retail Applications

Powers self-service kiosks for contactless and efficient customer transactions, from grocery checkout to flight check-ins.
Enables accurate scanning and data processing for seamless customer experiences.

Transportation and Logistics

Facilitates fast, accurate ticket scanning at boarding gates and secure locker access for mail and package delivery.
Integrates easily into logistics systems to improve traceability and reduce operational bottlenecks.

Healthcare Applications

Optimized for lab testing equipment, clinical analyzers, and consumable verification.
The 2D Scan Engine ensures high accuracy in reading test tubes and other medical instruments.

Manufacturing Applications

Enhances warehouse automation and robotic systems by integrating barcode scanning for inventory counting, quality checks, and step verification.

Why Choose Wavecreating Embedded Barcode Scanner Engine?

Accuracy: Eliminates human error while ensuring precise data capture.

Efficiency: Boosts throughput in applications, from self-service kiosks to industrial automation.

Traceability: Provides reliable tracking for every item in your process.

Quality: Delivers consistent, high-quality performance with a durable design.

Compact Size: Easily integrates into devices without adding bulk.

Wavecreating Embedded Barcode Scanner Engine is a versatile solution for OEM applications. From improving throughput in retail to enhancing traceability in healthcare and manufacturing, this product offers reliability, precision, and efficiency. Trust our Embedded Barcode Scanner Engine to revolutionize your processes while delivering superior results across various industries. Inquire now to increase your efficiency.
