Large scanning window, ultra-thin design.
Easy to read screen codes and paper bar codes.
The motion tolerance is as high as 0.8m/s.
Wide voltage design (DC 3.3V-5V)
Applicable to payment terminal, e-commerce self-service cabinet, smart home, locker, self-servicequery terminal, queue number calling deviceand other intelligent scenarios.Supports Linux, Android, and Windows.
DESCRIPTION

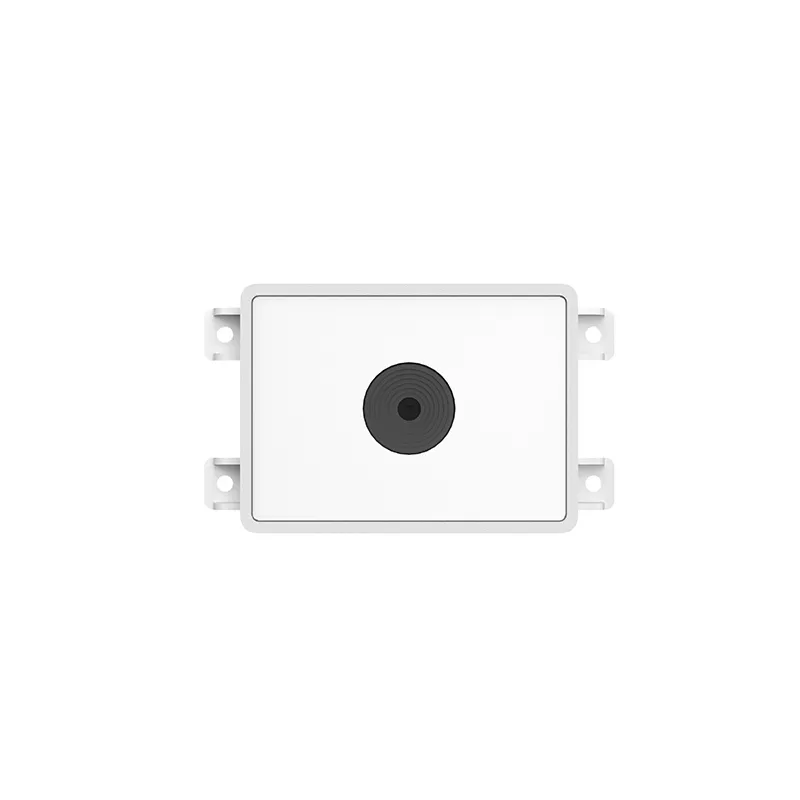

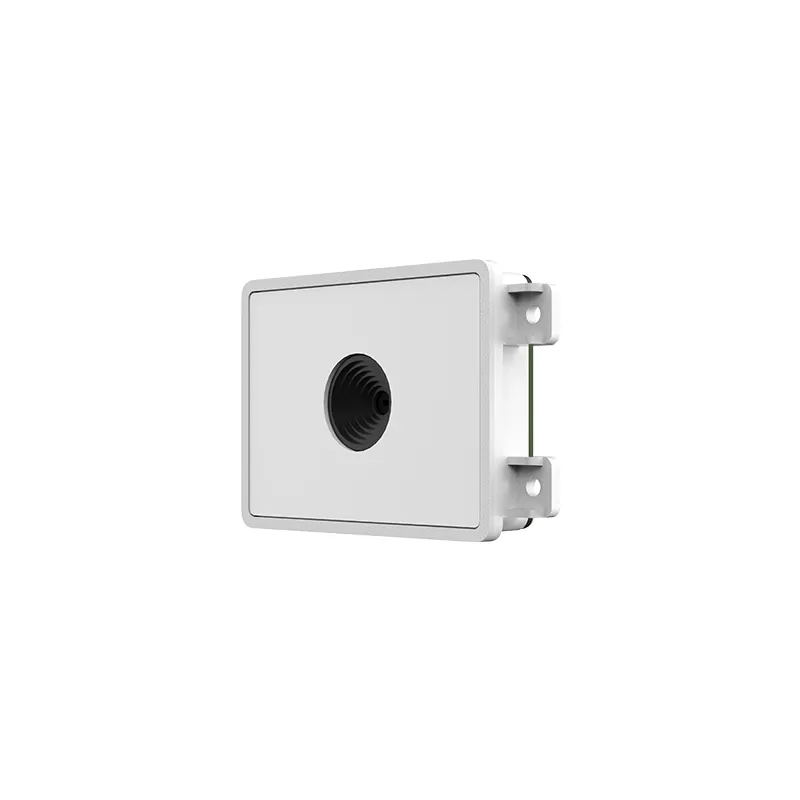

EM1732 Embedded QR Code Scanning Module is a high-performance scanning module that can easily read all kinds of 1D barcodes and 2D QR barcodes at high speed. Also easily scan and handle various scanning applications. This versatile module is not only stable and precise but also incredibly convenient and practical, making it an indispensable tool in diverse industries. Its seamless compatibility with multiple systems ensures seamless integration into existing workflows, further streamlining operations and boosting productivity.
Applications Fields: Smart Access Control, Locker, Scan Code Gun, Channel Gate, Station Inspection Ticket, Smart Self-Service Terminal, Supermarket, Retail Store, POS System, Cash Registers,Warehouse Management, Conference Ticketing, etc Need to Scan 2D Codes Industry Equipment.
Wavecreating features a one-stop solution that our customers may easily find everything they need including convenient after-sale services. Our Embedded QR codes are all qualified to the highest standard and have the best durability.
| Scaning Code | Image Sensor | 640 x 480 CMOS@30fps |
| Light Source | White fill light 6500K LED | |
| Horizontal View Angle | Horizontal 74°, Vertical58° | |
| Symbologies | 2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、 Maxicode、Micro PDF417、Code 16K | |
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、 CodaBar、Interleaved 2 of 5、 Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2 of 5 、 Plessey 、 China Post 、 GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) | ||
| Depth of Field | Wechat payment code: 12 ~ 200mm Refund code: 40 ~ 65mm | |
| Motion tolerance | Payment code：80cm/s | |
| Scan Angle | Roll:360°, Pitch:±60°, Skew:±60° | |
| Resolution | 1D≥5mil | |
| 2D≥10mil | ||
| Symbol Contrast | ≥25% | |
| Physical Parameter | Weight | 15g |
| Dimensions | 55.1mmL * 32.9mmW * 11.9mmH | |
| Interface | USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232 | |
| Voltage | DC +3.3V~5V | |
| Current@USB 5Vpower supply | Operating: 140mA | |
Environmental Parameters | Operating Temperature | -20℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ | |
| Working Humidity | 5% RH~95% RH (Non-condensing) |
A new generation, compact module for fixed-mount applications with the latest decoding core, provides a powerful scanning performance for all 1D, PDF, and 2D barcodes on mobile phone screens or on paper.
Provides a plug-and-play, integrated module solution for verifying barcodes, collecting payments, and billing customers.
Designed with a wide viewing angle and shallow depth of field to help ensure optimized performance for reading screen barcodes in near field. The broad decoding capabilities include rapid decoding of all 1D and 2D barcodes with particularly powerful reading capability of highly- reflective mobile phone screens, reducing process time and helping to improve the user experience.
Operates with white LED illumination to improve the reading performance of label barcodes in a low lighting environments. It is one of the very few 2D modules which has optimized performance for both screen barcodes and label barcodes,reducing customer cost and helping to improve the user experience.
1.Automatic gate, Access control system
2.Ticket Vending Machine
3.Vending Machine
4.Garbage sorting bin
5.Manufacturing
6.Warehouse & Logistics
7.Hospital Self-service machine
8.Parking lot
9.Payment terminal
The Embedded Qr Code Scanning Module is developed and produced by our company. The company has professional technicians to provide after-sales technical support. Please rest assured to buy; Thank you for your support and trust.
If you need to know the product details, you can contact us. We will send you the product development materials and setup manual.
