Embedded scan engine special design wide field of view.
The 4th generation I-SUBPIXEL algorithm easily and quickly scan various barcodes.

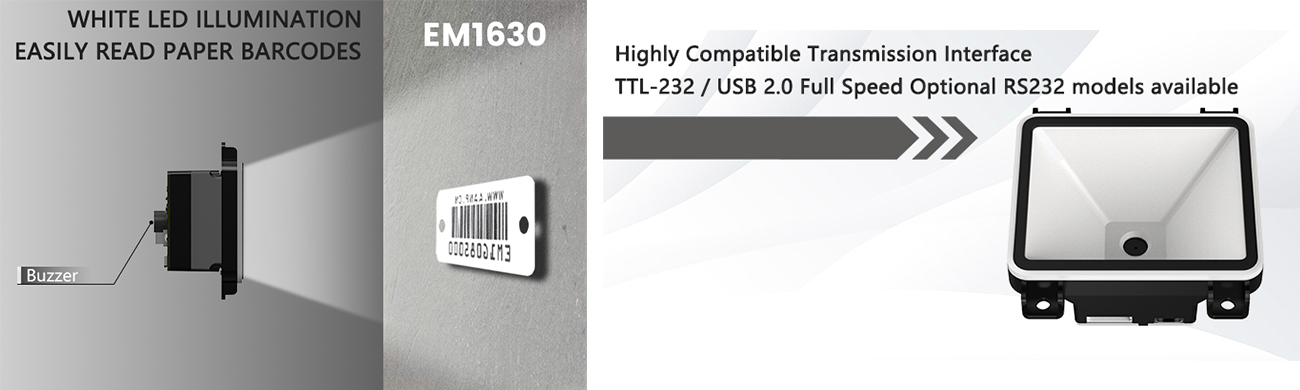

White led illumination, easily read paper barcodes.
Highly compatible transmission interface, TTL-233/USB 2.0 full speed optional RS232 models available.
Suitable for smart scenarios such as self-service, machines, public transportation, gates and so on.
Support Linux, Android, Windows and other systems.
DESCRIPTION

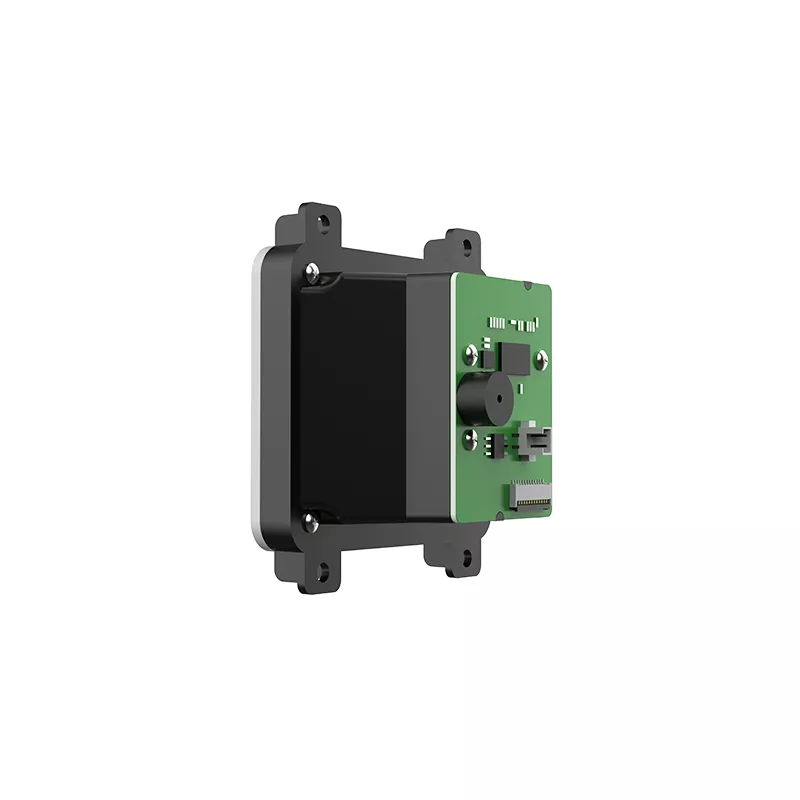

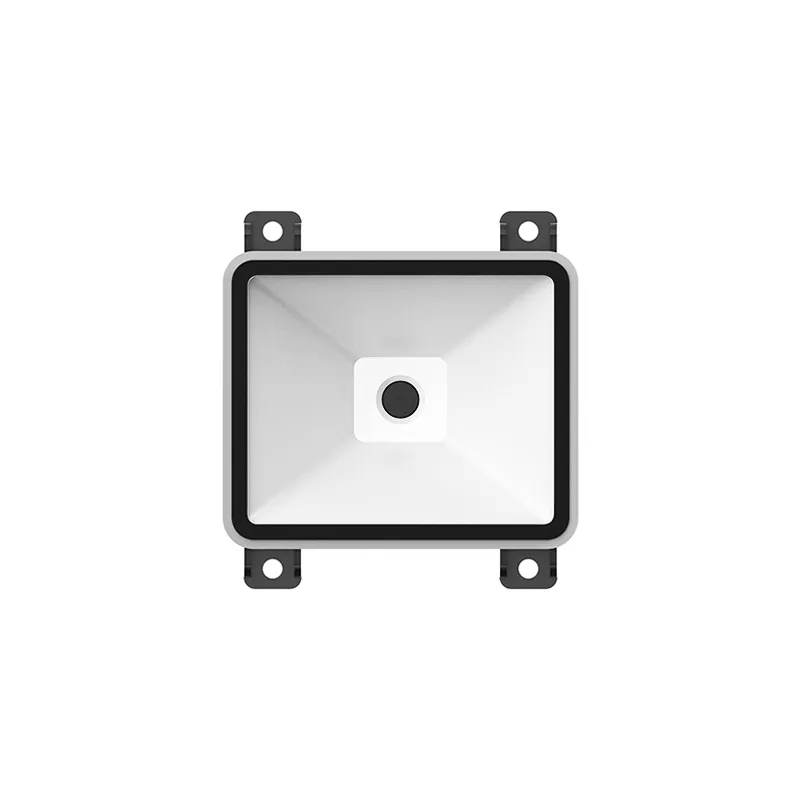

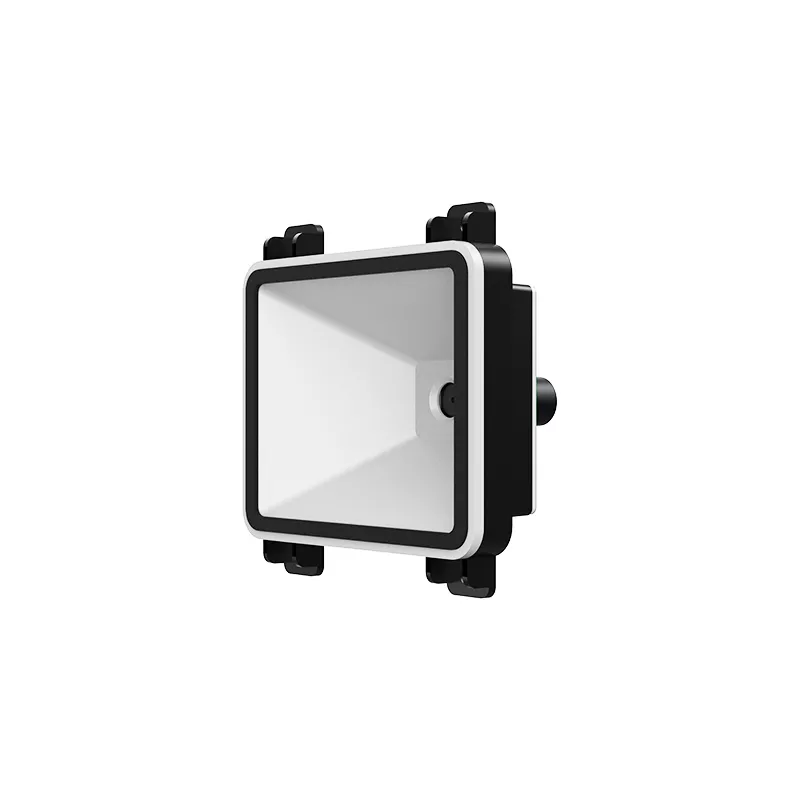

Wavecreating USB Embedded Scan Module is a high-performance, versatile solution designed to integrate into a variety of devices and systems. This innovative Barcode Laser Scanner Module ensures fast, accurate barcode and QR code scanning, even in challenging environments. With the Barcode Engine at its core, it is perfect for applications in self-service systems, public transportation, vending machines, and more.
The USB Embedded Scan Module is designed to fit seamlessly into various devices, both inside and outside machinery.
Ideal for applications like self-service cash registers, vending machines, express cabinets, and registration kiosks, promoting the development of "smart cities."
Integrated with the Wavecreating EM1630, the Barcode Engine delivers rapid barcode or QR code decoding in approximately 1 second, even in low-light environments.
Employs the 4th-generation I-SUBPIXEL algorithm to scan 1D and 2D codes with unparalleled precision.
White LED illumination enables easy barcode reading on paper and screens.
Large scanning window and wide field of view support omni-directional reading.
Self-induction image reading ensures hands-free operation in busy environments.
Super large scanning window paired with a wide vision sensor for increased accuracy.
Capable of reading barcodes on screens without backlight, suitable for modern smartphone usage.
Three working modes: normal mode, mobile phone mode, and fast-moving mode, to adapt to different operational requirements.
Small and fashionable appearance ensures easy embedding into devices.
Highly portable and unobtrusive, perfect for embedded systems.
Embedded in self-service cash registers at supermarkets, the USB Embedded Scan Module enables fast, efficient payment processes.
Ideal for vending machines and express lockers, ensuring reliable barcode scanning for user convenience.
Integrated into subway gates, buses, and toll collection systems, the Barcode Laser Scanner Module ensures high-frequency, accurate scanning in dynamic environments.
Supports barcode reading from mobile screens, even without backlight, making it highly compatible with modern devices.
Facilitates the construction of smart cities by integrating into various self-service terminals, from payment machines to registration systems.
Designed for high reliability and stability in demanding scenarios, enabling seamless user experiences.
| Model | EM1630 | |
Scan Code Performance | Image Sensor | 640 x 480 CMOS |
| perspective | Horizontal 68° | |
| Reading angle | Rotation: 360°, Pitch: ± 60°, Deflection: ±60° | |
| Code system | 2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、Maxicode、Micro PDF417、Code 16K | |
1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、Interleaved 2 of 5、 Industrial 2 of 5、Matrix 2 of 5、Code11、MSI-Plessey、Standard 2 of 5、Plessey、China Post、 GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) | ||
| Classic depth of field | EAN-13: 20 ~ 110mm （13mil） Code128: 25 ~ 130mm （15mil） Wechat payment code: 10 ~ 200mm（5-inch screen mobile phone） Mobile phone QR code for taking bus: 30 ~ 130mm （5-inch screen mobile phone | |
| Reading accuracy | 1D ≥ 5mil / 2D ≥ 10mil | |
| sign contrast | ≥ 25% | |
| motion tolerance | ≥ 80cm/s (payment code) | |
Environmental Parameter | light source | White fill light / Color light prompt |
| Operating Voltage | DC +3.3V ~ +5V (±5%) | |
| Current | Operating: 125mA (No voice broadcast) / 450mA (Voice broadcast) Sleeping: 85mA | |
| Weight | 30g | |
| Physical dimension | 65mm * 61.5mm * 36.76mm | |
| Material | ABS | |
| Communication port | USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232 | |
Fast and Reliable Scanning: The USB Embedded Scan Module combines speed, accuracy, and flexibility, making it the go-to solution for high-demand applications.
Versatility: It supports multiple scenarios, from retail and public transportation to industrial automation.
Ease of Integration: With built-in RS232 and USB interfaces, along with a compact design, it fits seamlessly into diverse devices.
Advanced Features: Self-induction reading, omni-directional scanning, and multiple language support ensure exceptional performance.
The USB Embedded Scan Module is a revolutionary solution that excels in speed, precision, and adaptability. With Wavecreating's Barcode Laser Scanner Module and advanced Barcode Engine, it is ideal for applications ranging from self-service kiosks to smart transportation systems. For professionals seeking robust, efficient scanning solutions, the USB Embedded Scan Module delivers unmatched performance and reliability. Inquire now for unrivaled scanner modules!
