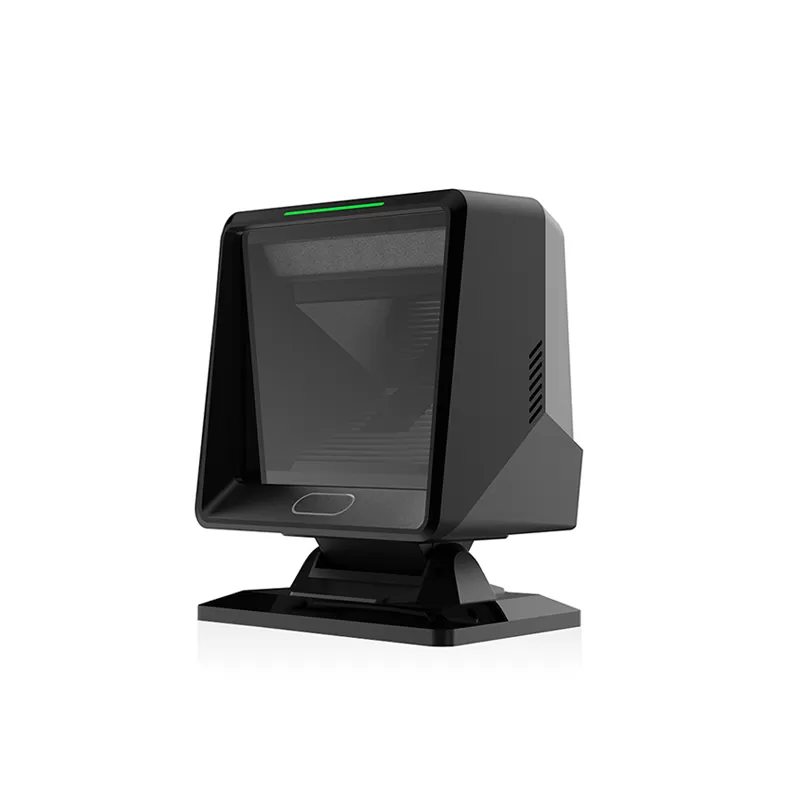

SD5437 Desktop Wired Barcode Scanner

New generation LED solution.
High-performance customized CPU.
The 4th generation I-SUBPIXEL algorithm.

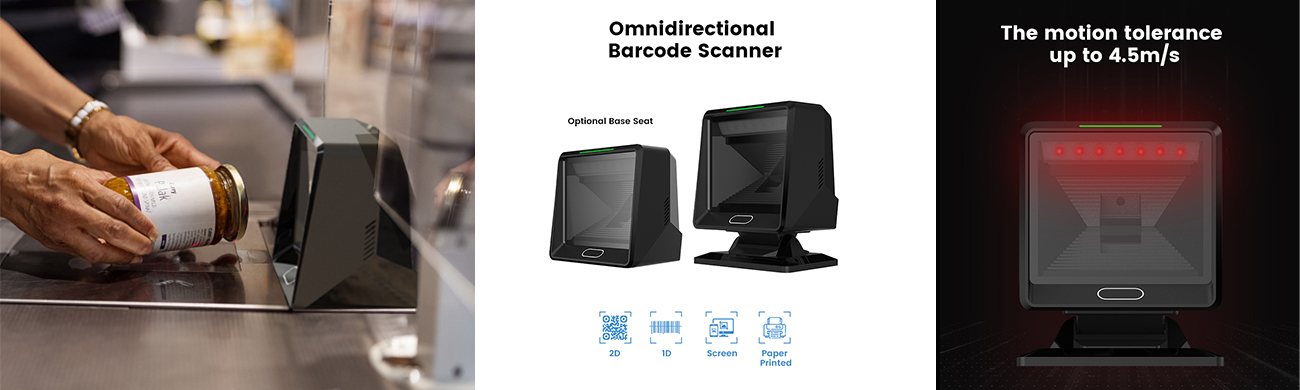

Motion tolerance up to 4.5m/s.
Wide range of depth of field, 0 distance scan code also be easily identified.
Support fuzzy/damaged/reversed/color/print proble/incomplete 1D/2D barcode.
Applicable to restaurant, supermarket, hotel, governments and other intelligent scenarios.
Support Linux, Android, Windows and Mac OS systems.

Product Brochure

Inquire Now Next Product

DESCRIPTION

Scan code Performance	Sensor		800 X 500 CMOS@120fps
	Light source		Red LED
	Perspective		Horizontal 48°, Vertical 32°
	ReadCode system	2D	QR Code、PDF417、DataMatrix (ECC200)、Micro QR 、Hanxin Code、Micro PDF417、Maxi Code、Aztec、Code49
	ReadCode system	1D	EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar 、Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Expand、RSS-Limited、Standard 2 of 5、Code 16K、Plessey、ChinaPost
	Read Depth of field	Code39	0 ~ 60mm (5mil)
		EAN13	0 ~ 200mm (13mil)
		CODE128	0 ~ 350mm (15mil)
		QR	0 ~ 540mm (55mil)
	Motion tolerance	EAN13 Paper Code	≥3.5m/s (tested 4cm from product surface)
	Reading angle		Rotation: 360°, Pitch: ±60°, Deflection: ±60°
	Reading mode		Inductive mode
	Reading accuracy		1D ≥ 4mil / 2D ≥ 10mil
	Symbol contrast		≥15%
Physics Parameters	Weight		< 450g (Excluding base）, < 550g (Including base）
	Appearance size		133.57mm * 145.60mm * 100.28mm (Excluding base)172.23mm * 145.6mm * 100.28mm (Including base
	Line length		1.5 meters
	Interface		USB VCP / USB HID-KBW (Default) / USB HID-POS
	Read tips		LED prompt, Buzzer
	Voltage		DC+5V ±5%
	Operating current		500mA
Environment Parameters	Operating temperature		-20 ℃ ~ 60 ℃
	Storage temperature		-40 ℃ ~ 70 ℃
	Working humidity		5% RH ~ 95% RH (no condensation)
Accessories	Optional accessories		Base
