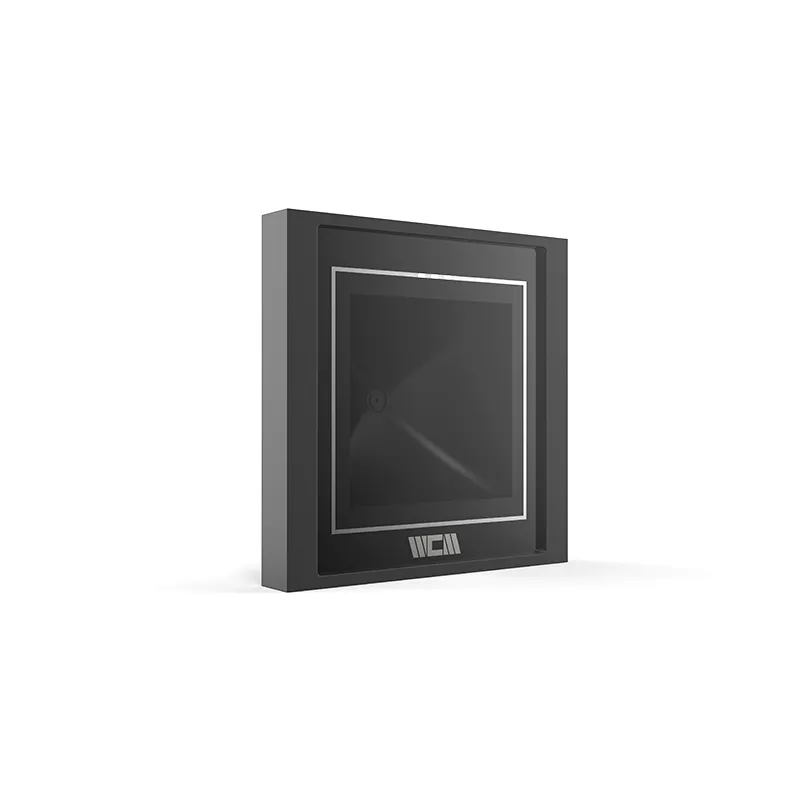

AC8030 Barcode NFC Card Access Control Reader

The 4th generation I-SUBPIXEL algorithm of intelligent access control card readers.
Flexible, optional relay.
Support non-contact ic cards, type A/B, M1 card.
Support customized software according to customer’s requirements.
Various interface is available wiegand, RS232, RS485, USB, Ethernet.
Suitable for such as control of the elevator, commuity, office, club, factory, school and so on.

Product Brochure

Inquire Now

DESCRIPTION

Module		AC8030
Morphology Interface	Dimensions	86mm86mm38mm
	Material	PC+ armoured glass
	Weight	100g
	Voltage	DC 12V(5V-30V) ,USB 5V
	Current	<160mA 12V
	Interface	Wiegand，RS232，RS485，USB
Code Scanning Performance	Image Sensor	640 x 480 CMOS，30fps
	View Angle	Horizontal 63°, Vertical51°
	Scan Angle	Roll:360°, Pitch:±60°, Skew:±50°
	Support Code	On by default：EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、QR Code、PDF417、DataMatrixOff by default：Interleaved 2 of 5、Industrial 25、Matrix 2 of 5、Code11、 MSI Plessey 、RSS-14、RSS-Limited、RSS-Expanded
	Reading Distance	0-200mm (6-inch mobile phone, wechat QR payment code)
	Resolution	1D：≥5mil / 2D：≥10mil
	Symbol Contrast	≥ 25%
	Recognition Mode	Active / passive, with support for induction mode
	Scan Code Feedback Beep	Beeping; the green light indicates scanning code
	Support Card	ISO14443A / B, support ID card physical ID, NFC mobile phone, Mifarecard
Environmental Parameters	Operating Temperature	-20℃ ~ 60℃
	Operating Humidity	5%RH~95%RH（Non-condensing）
	Storage Temperature	-40℃ ~ 80℃
	Ambient Lighting	0-80000Lux
	Static Protection	Contact discharge ± 6KV and air discharge ± 12KV
	IP Protection	Front IP54
